Cluster Information Query Command

Show Variables

Currently, IoTDB supports showing key parameters of the cluster:

SHOW VARIABLES

Eg:

IoTDB> show variables
+----------------------------------+-----------------------------------------------------------------+
|                          Variable|                                                            Value|
+----------------------------------+-----------------------------------------------------------------+
|                       ClusterName|                                                   defaultCluster|
|             DataReplicationFactor|                                                                1|
|           SchemaReplicationFactor|                                                                1|
|  DataRegionConsensusProtocolClass|                      org.apache.iotdb.consensus.iot.IoTConsensus|
|SchemaRegionConsensusProtocolClass|                  org.apache.iotdb.consensus.ratis.RatisConsensus|
|  ConfigNodeConsensusProtocolClass|                  org.apache.iotdb.consensus.ratis.RatisConsensus|
|             TimePartitionInterval|                                                        604800000|
|                    DefaultTTL(ms)|                                              9223372036854775807|
|              ReadConsistencyLevel|                                                           strong|
|           SchemaRegionPerDataNode|                                                              1.0|
|            DataRegionPerProcessor|                                                              1.0|
|           LeastDataRegionGroupNum|                                                                5|
|                     SeriesSlotNum|                                                            10000|
|           SeriesSlotExecutorClass|org.apache.iotdb.commons.partition.executor.hash.BKDRHashExecutor|
|         DiskSpaceWarningThreshold|                                                             0.05|
+----------------------------------+-----------------------------------------------------------------+
Total line number = 15
It costs 0.225s

Notice: Ensure that all key parameters displayed in this SQL are consist on each node in the same cluster

Show ConfigNode information

Currently, IoTDB supports showing ConfigNode information by the following SQL:

SHOW CONFIGNODES

Eg:

IoTDB> show confignodes
+------+-------+---------------+------------+--------+
|NodeID| Status|InternalAddress|InternalPort|    Role|
+------+-------+---------------+------------+--------+
|     0|Running|      127.0.0.1|       10710|  Leader|
|     1|Running|      127.0.0.1|       10711|Follower|
|     2|Running|      127.0.0.1|       10712|Follower|
+------+-------+---------------+------------+--------+
Total line number = 3
It costs 0.030s

ConfigNode status definition

The ConfigNode statuses are defined as follows:

  • Running: The ConfigNode is running properly.
  • Unknown: The ConfigNode doesn't report heartbeat properly.

Show DataNode information

Currently, IoTDB supports showing DataNode information by the following SQL:

SHOW DATANODES

Eg:

IoTDB> create timeseries root.sg.d1.s1 with datatype=BOOLEAN,encoding=PLAIN
Msg: The statement is executed successfully.
IoTDB> create timeseries root.sg.d2.s1 with datatype=BOOLEAN,encoding=PLAIN
Msg: The statement is executed successfully.
IoTDB> create timeseries root.ln.d1.s1 with datatype=BOOLEAN,encoding=PLAIN
Msg: The statement is executed successfully.
IoTDB> show datanodes
+------+-------+----------+-------+-------------+---------------+
|NodeID| Status|RpcAddress|RpcPort|DataRegionNum|SchemaRegionNum|
+------+-------+----------+-------+-------------+---------------+
|     1|Running| 127.0.0.1|   6667|            0|              1|
|     2|Running| 127.0.0.1|   6668|            0|              1|
+------+-------+----------+-------+-------------+---------------+
Total line number = 2
It costs 0.007s

IoTDB> insert into root.ln.d1(timestamp,s1) values(1,true)
Msg: The statement is executed successfully.
IoTDB> show datanodes
+------+-------+----------+-------+-------------+---------------+
|NodeID| Status|RpcAddress|RpcPort|DataRegionNum|SchemaRegionNum|
+------+-------+----------+-------+-------------+---------------+
|     1|Running| 127.0.0.1|   6667|            1|              1|
|     2|Running| 127.0.0.1|   6668|            0|              1|
+------+-------+----------+-------+-------------+---------------+
Total line number = 2
It costs 0.006s

DataNode status definition

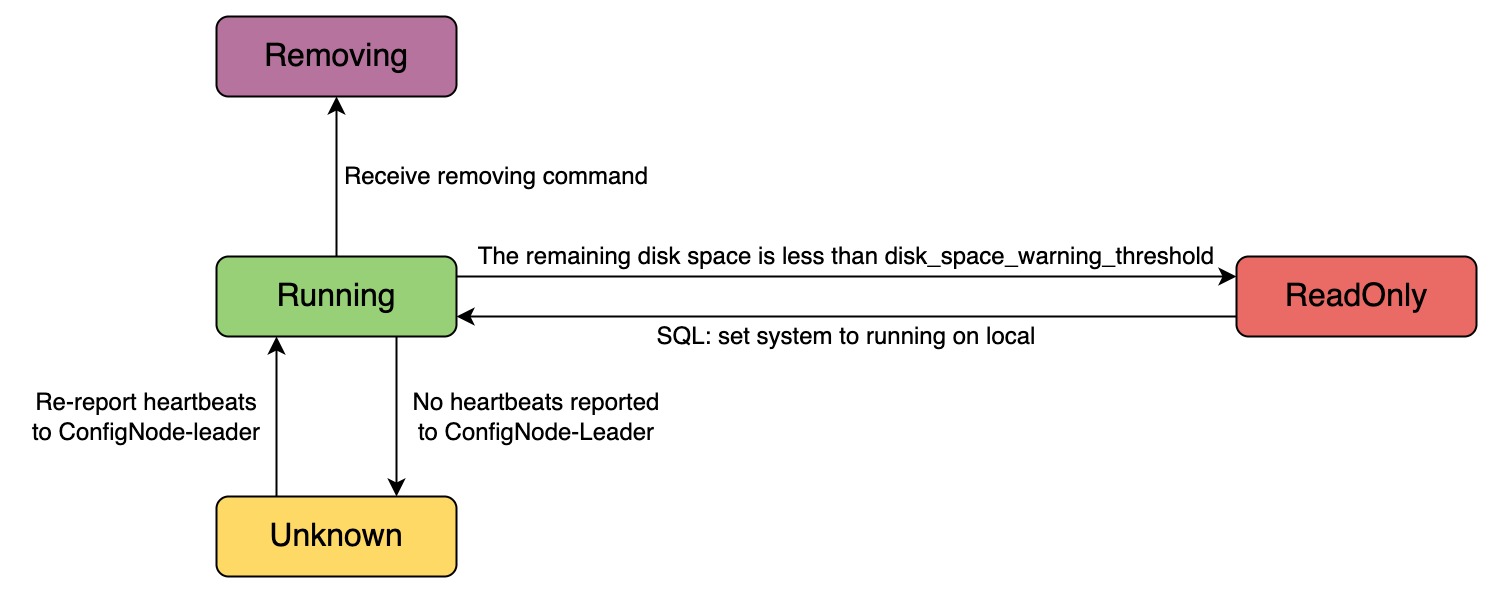

The state machine of DataNode is shown in the figure below:

The DataNode statuses are defined as follows:

  • Running: The DataNode is running properly and is readable and writable.
  • Unknown: The DataNode doesn't report heartbeat properly, the ConfigNode considers the DataNode as unreadable and un-writable.
  • Removing: The DataNode is being removed from the cluster and is unreadable and un-writable.
  • ReadOnly: The remaining disk space of DataNode is lower than disk_warning_threshold(default is 5%), the DataNode is readable but un-writable and cannot synchronize data.

Show all Node information

Currently, IoTDB supports show the information of all Nodes by the following SQL:

SHOW CLUSTER

Eg:

IoTDB> show cluster
+------+----------+-------+---------------+------------+
|NodeID|  NodeType| Status|InternalAddress|InternalPort|
+------+----------+-------+---------------+------------+
|     0|ConfigNode|Running|      127.0.0.1|       10710|
|     1|ConfigNode|Running|      127.0.0.1|       10711|
|     2|ConfigNode|Running|      127.0.0.1|       10712|
|     3|  DataNode|Running|      127.0.0.1|       10730|
|     4|  DataNode|Running|      127.0.0.1|       10731|
|     5|  DataNode|Running|      127.0.0.1|       10732|
+------+----------+-------+---------------+------------+
Total line number = 6
It costs 0.011s

After a node is stopped, its status will change, as shown below:

IoTDB> show cluster
+------+----------+-------+---------------+------------+
|NodeID|  NodeType| Status|InternalAddress|InternalPort|
+------+----------+-------+---------------+------------+
|     0|ConfigNode|Running|      127.0.0.1|       10710|
|     1|ConfigNode|Unknown|      127.0.0.1|       10711|
|     2|ConfigNode|Running|      127.0.0.1|       10712|
|     3|  DataNode|Running|      127.0.0.1|       10730|
|     4|  DataNode|Running|      127.0.0.1|       10731|
|     5|  DataNode|Running|      127.0.0.1|       10732|
+------+----------+-------+---------------+------------+
Total line number = 6
It costs 0.012s

Show the details of all nodes:

SHOW CLUSTER DETAILS

Eg:

IoTDB> show cluster details
+------+----------+-------+---------------+------------+-------------------+----------+-------+-------+-------------------+-----------------+
|NodeID|  NodeType| Status|InternalAddress|InternalPort|ConfigConsensusPort|RpcAddress|RpcPort|MppPort|SchemaConsensusPort|DataConsensusPort|
+------+----------+-------+---------------+------------+-------------------+----------+-------+-------+-------------------+-----------------+
|     0|ConfigNode|Running|      127.0.0.1|       10710|              10720|          |       |       |                   |                 |
|     1|ConfigNode|Running|      127.0.0.1|       10711|              10721|          |       |       |                   |                 |
|     2|ConfigNode|Running|      127.0.0.1|       10712|              10722|          |       |       |                   |                 |
|     3|  DataNode|Running|      127.0.0.1|       10730|                   | 127.0.0.1|   6667|  10740|              10750|            10760|
|     4|  DataNode|Running|      127.0.0.1|       10731|                   | 127.0.0.1|   6668|  10741|              10751|            10761|
|     5|  DataNode|Running|      127.0.0.1|       10732|                   | 127.0.0.1|   6669|  10742|              10752|            10762|
+------+----------+-------+---------------+------------+-------------------+----------+-------+-------+-------------------+-----------------+
Total line number = 6
It costs 0.340s

Show Region information

The cluster uses a SchemaRegion/DataRegion as a unit for schema/data replication and data management.
The Region status and distribution is helpful for system operation and maintenance testing, as shown in the following scenarios:

  • Check which DataNodes are allocated to each Region in the cluster and whether they are balanced.
  • Check the partitions allocated to each Region in the cluster and whether they are balanced.
  • Check which DataNodes are allocated by the leaders of each RegionGroup in the cluster and whether they are balanced.

Currently, IoTDB supports show Region information by the following SQL:

  • SHOW REGIONS: Show distribution of all Regions.
  • SHOW SCHEMA REGIONS: Show distribution of all SchemaRegions.
  • SHOW DATA REGIONS: Show distribution of all DataRegions.
  • SHOW (DATA|SCHEMA)? REGIONS OF DATABASE <sg1,sg2,...>: Show Region distribution of specified StorageGroups.

Show distribution of all Regions:

IoTDB> show regions
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
|RegionId|        Type| Status|Database|SeriesSlots|TimeSlots|DataNodeId|RpcAddress|RpcPort|    Role|
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
|       0|  DataRegion|Running|root.sg1|          1|        1|         1| 127.0.0.1|   6667|Follower|
|       0|  DataRegion|Running|root.sg1|          1|        1|         2| 127.0.0.1|   6668|  Leader|
|       0|  DataRegion|Running|root.sg1|          1|        1|         3| 127.0.0.1|   6669|Follower|
|       1|SchemaRegion|Running|root.sg1|          1|        0|         1| 127.0.0.1|   6667|Follower|
|       1|SchemaRegion|Running|root.sg1|          1|        0|         2| 127.0.0.1|   6668|Follower|
|       1|SchemaRegion|Running|root.sg1|          1|        0|         3| 127.0.0.1|   6669|  Leader|
|       2|  DataRegion|Running|root.sg2|          1|        1|         1| 127.0.0.1|   6667|  Leader|
|       2|  DataRegion|Running|root.sg2|          1|        1|         2| 127.0.0.1|   6668|Follower|
|       2|  DataRegion|Running|root.sg2|          1|        1|         3| 127.0.0.1|   6669|Follower|
|       3|SchemaRegion|Running|root.sg2|          1|        0|         1| 127.0.0.1|   6667|Follower|
|       3|SchemaRegion|Running|root.sg2|          1|        0|         2| 127.0.0.1|   6668|  Leader|
|       3|SchemaRegion|Running|root.sg2|          1|        0|         3| 127.0.0.1|   6669|Follower|
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
Total line number = 12
It costs 0.165s

Show the distribution of SchemaRegions or DataRegions:

IoTDB> show data regions
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
|RegionId|        Type| Status|Database|SeriesSlots|TimeSlots|DataNodeId|RpcAddress|RpcPort|    Role|
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
|       0|  DataRegion|Running|root.sg1|          1|        1|         1| 127.0.0.1|   6667|Follower|
|       0|  DataRegion|Running|root.sg1|          1|        1|         2| 127.0.0.1|   6668|  Leader|
|       0|  DataRegion|Running|root.sg1|          1|        1|         3| 127.0.0.1|   6669|Follower|
|       2|  DataRegion|Running|root.sg2|          1|        1|         1| 127.0.0.1|   6667|  Leader|
|       2|  DataRegion|Running|root.sg2|          1|        1|         2| 127.0.0.1|   6668|Follower|
|       2|  DataRegion|Running|root.sg2|          1|        1|         3| 127.0.0.1|   6669|Follower|
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
Total line number = 6
It costs 0.011s

IoTDB> show schema regions
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
|RegionId|        Type| Status|Database|SeriesSlots|TimeSlots|DataNodeId|RpcAddress|RpcPort|    Role|
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
|       1|SchemaRegion|Running|root.sg1|          1|        0|         1| 127.0.0.1|   6667|Follower|
|       1|SchemaRegion|Running|root.sg1|          1|        0|         2| 127.0.0.1|   6668|Follower|
|       1|SchemaRegion|Running|root.sg1|          1|        0|         3| 127.0.0.1|   6669|  Leader|
|       3|SchemaRegion|Running|root.sg2|          1|        0|         1| 127.0.0.1|   6667|Follower|
|       3|SchemaRegion|Running|root.sg2|          1|        0|         2| 127.0.0.1|   6668|  Leader|
|       3|SchemaRegion|Running|root.sg2|          1|        0|         3| 127.0.0.1|   6669|Follower|
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
Total line number = 6
It costs 0.012s

Show Region distribution of specified StorageGroups:

IoTDB> show regions of database root.sg1
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
|RegionId|        Type| Status|Database|SeriesSlots|TimeSlots|DataNodeId|RpcAddress|RpcPort|    Role|
+--------+------------+-------+-- -----+-----------+---------+----------+----------+-------+--------+
|       0|  DataRegion|Running|root.sg1|          1|        1|         1| 127.0.0.1|   6667|Follower|
|       0|  DataRegion|Running|root.sg1|          1|        1|         2| 127.0.0.1|   6668|  Leader|
|       0|  DataRegion|Running|root.sg1|          1|        1|         3| 127.0.0.1|   6669|Follower|
|       1|SchemaRegion|Running|root.sg1|          1|        0|         1| 127.0.0.1|   6667|Follower|
|       1|SchemaRegion|Running|root.sg1|          1|        0|         2| 127.0.0.1|   6668|Follower|
|       1|SchemaRegion|Running|root.sg1|          1|        0|         3| 127.0.0.1|   6669|  Leader|
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
Total line number = 6
It costs 0.007s

IoTDB> show regions of database root.sg1, root.sg2
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
|RegionId|        Type| Status|Database|SeriesSlots|TimeSlots|DataNodeId|RpcAddress|RpcPort|    Role|
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
|       0|  DataRegion|Running|root.sg1|          1|        1|         1| 127.0.0.1|   6667|Follower|
|       0|  DataRegion|Running|root.sg1|          1|        1|         2| 127.0.0.1|   6668|  Leader|
|       0|  DataRegion|Running|root.sg1|          1|        1|         3| 127.0.0.1|   6669|Follower|
|       1|SchemaRegion|Running|root.sg1|          1|        0|         1| 127.0.0.1|   6667|Follower|
|       1|SchemaRegion|Running|root.sg1|          1|        0|         2| 127.0.0.1|   6668|Follower|
|       1|SchemaRegion|Running|root.sg1|          1|        0|         3| 127.0.0.1|   6669|  Leader|
|       2|  DataRegion|Running|root.sg2|          1|        1|         1| 127.0.0.1|   6667|  Leader|
|       2|  DataRegion|Running|root.sg2|          1|        1|         2| 127.0.0.1|   6668|Follower|
|       2|  DataRegion|Running|root.sg2|          1|        1|         3| 127.0.0.1|   6669|Follower|
|       3|SchemaRegion|Running|root.sg2|          1|        0|         1| 127.0.0.1|   6667|Follower|
|       3|SchemaRegion|Running|root.sg2|          1|        0|         2| 127.0.0.1|   6668|  Leader|
|       3|SchemaRegion|Running|root.sg2|          1|        0|         3| 127.0.0.1|   6669|Follower|
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
Total line number = 12
It costs 0.009s

IoTDB> show data regions of database root.sg1, root.sg2
+--------+----------+-------+--------+-----------+---------+----------+----------+-------+--------+
|RegionId|      Type| Status|Database|SeriesSlots|TimeSlots|DataNodeId|RpcAddress|RpcPort|    Role|
+--------+----------+-------+--------+-----------+---------+----------+----------+-------+--------+
|       0|DataRegion|Running|root.sg1|          1|        1|         1| 127.0.0.1|   6667|Follower|
|       0|DataRegion|Running|root.sg1|          1|        1|         2| 127.0.0.1|   6668|  Leader|
|       0|DataRegion|Running|root.sg1|          1|        1|         3| 127.0.0.1|   6669|Follower|
|       2|DataRegion|Running|root.sg2|          1|        1|         1| 127.0.0.1|   6667|  Leader|
|       2|DataRegion|Running|root.sg2|          1|        1|         2| 127.0.0.1|   6668|Follower|
|       2|DataRegion|Running|root.sg2|          1|        1|         3| 127.0.0.1|   6669|Follower|
+--------+----------+-------+--------+-----------+---------+----------+----------+-------+--------+
Total line number = 6
It costs 0.007s

IoTDB> show schema regions of database root.sg1, root.sg2
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
|RegionId|        Type| Status|Database|SeriesSlots|TimeSlots|DataNodeId|RpcAddress|RpcPort|    Role|
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
|       1|SchemaRegion|Running|root.sg1|          1|        0|         1| 127.0.0.1|   6667|Follower|
|       1|SchemaRegion|Running|root.sg1|          1|        0|         2| 127.0.0.1|   6668|Follower|
|       1|SchemaRegion|Running|root.sg1|          1|        0|         3| 127.0.0.1|   6669|  Leader|
|       3|SchemaRegion|Running|root.sg2|          1|        0|         1| 127.0.0.1|   6667|Follower|
|       3|SchemaRegion|Running|root.sg2|          1|        0|         2| 127.0.0.1|   6668|  Leader|
|       3|SchemaRegion|Running|root.sg2|          1|        0|         3| 127.0.0.1|   6669|Follower|
+--------+------------+-------+--------+-----------+---------+----------+----------+-------+--------+
Total line number = 6
It costs 0.009s

Region status definition

Region inherits the status of the DataNode where the Region resides. And Region states are defined as follows:

  • Running: The DataNode where the Region resides is running properly, the Region is readable and writable.
  • Unknown: The DataNode where the Region resides doesn't report heartbeat properly, the ConfigNode considers the Region is unreadable and un-writable.
  • Removing: The DataNode where the Region resides is being removed from the cluster, the Region is unreadable and un-writable.
  • ReadOnly: The available disk space of the DataNode where the Region resides is lower than the disk_warning_threshold(5% by default). The Region is readable but un-writable and cannot synchronize data.

Show cluster slots information

The cluster uses partitions for schema and data arrangement, the partition is defined as follows:

  • SchemaPartition: series slot
  • DataPartition: <series slot, time slot>

The cluster slots information can be shown by the following SQLs:

Show the DataRegion where a DataPartition resides

Show the DataRegion where a DataPartition(or all DataPartitions under a same series slot) resides:

  • SHOW DATA REGIONID OF root.sg WHERE SERIESSLOTID=s0 (AND TIMESLOTID=t0)

Eg:

IoTDB> show data regionid of root.sg where seriesslotid=5286 and timeslotid=0
+--------+
|RegionId|
+--------+
|       1|
+--------+
Total line number = 1
It costs 0.006s

IoTDB> show data regionid of root.sg where seriesslotid=5286
+--------+
|RegionId|
+--------+
|       1|
|       2|
+--------+
Total line number = 2
It costs 0.006s

Show the SchemaRegion where a SchemaPartition resides

Show the SchemaRegion where a SchemaPartition resides:

  • SHOW SCHEMA REGIONID OF root.sg WHERE SERIESSLOTID=s0

Eg:

IoTDB> show schema regionid of root.sg where seriesslotid=5286
+--------+
|RegionId|
+--------+
|       0|
+--------+
Total line number = 1
It costs 0.007s

Show time slots of a series slot

Show the time slots under a particular series slot.

  • SHOW TIMESLOTID OF root.sg WHERE SERIESLOTID=s0 (AND STARTTIME=t1) (AND ENDTIME=t2)

Eg:

IoTDB> show timeslotid of root.sg where seriesslotid=5286
+----------+
|TimeSlotId|
+----------+
|         0|
|      1000|
+----------+
Total line number = 1
It costs 0.007s

Show Database's series slots

Show the data/schema/all series slots related to a database:

  • SHOW (DATA|SCHEMA)? SERIESSLOTID OF root.sg

Eg:

IoTDB> show data seriesslotid of root.sg
+------------+
|SeriesSlotId|
+------------+
|        5286|
+------------+
Total line number = 1
It costs 0.007s

IoTDB> show schema seriesslotid of root.sg
+------------+
|SeriesSlotId|
+------------+
|        5286|
+------------+
Total line number = 1
It costs 0.006s

IoTDB> show seriesslotid of root.sg
+------------+
|SeriesSlotId|
+------------+
|        5286|
+------------+
Total line number = 1
It costs 0.006s

Copyright © 2024 The Apache Software Foundation.
Apache and the Apache feather logo are trademarks of The Apache Software Foundation

Have a question? Connect with us on QQ, WeChat, or Slack. Join the community now.

We use Google Analytics to collect anonymous, aggregated usage information.
